3500 kgs CPD35 3.5 Ton electric forklift lead acid battery AC motor container mast
Main information:
Load capacity: 3500kg*500mm
Lead acid battery 80V/350Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
3 stage 4.5m mast
Solid tires
Fork 1220mm
Attachments: according to customers' requirements.
ADVANTAGES
The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.
Curtis controller

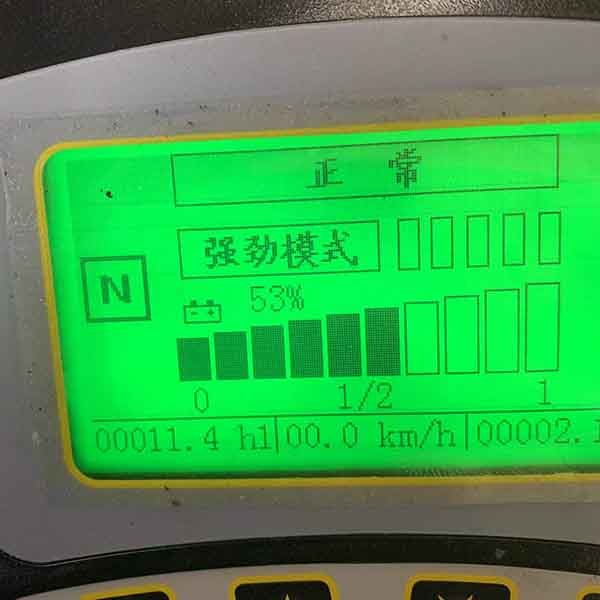

The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.
High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.
Durable and long working life
The enhanced drive axle and gearbox with the mast, steering axles and big tires for internal combustion forklifts can meet the demand of application in heavy-duty working conditions;
Low center of gravity and high load margin are designed for more stable working;
Verified in accordance with double standards of electric forklifts and internal combustion forklifts, with the enhanced test strength higher than that for the internal combustion standard, this forklift is reliable and durable.
Stylish exterior
Following the traditional design of HK series forklifts, it has simple and
elegant vehicle body, and presenting both fashion and steadiness as a whole.
| Item | Model | | CPD35 |
| 1 | Power type | | Battery |
| 2 | Rated load | KG | 3500 |
| 3 | Load center distance | mm | 500 |
| 4 | Driving type | | Seat |
| 5 | Length With fork | mm | 3850 |
| 6 | Length Without fork | 2780 |
| 7 | Whole Width | 1270 |
| 8 | Height no lifting frame | 2050 |
| 9 | Top frame height | 2205 |
| 10 | Max Height working | 4055 |
| 11 | Distance from seat to top light | 972 |
| 12 | Wheel base | 1830 |
| 13 | Front overhang | 475 |
| 14 | Back overhang | 490 |
| 15 | Front wheel tread | 996 |
| 16 | Back wheel tread | 968 |
| 17 | Min Floor clearance | 115 |
| 18 | Max lifting height | 3000 |
| 19 | Free lifting height | 145 |
| 20 | Fork changing | 250~1100 |
| 21 | Min Turning radius(outside) | 2500 |
| 22 | Min Right angle aisle width | 4275 |
| 23 | Frame angle (front/back) | (°) | 5/10 |
| 24 | Max lifting speed without goods | mm/s | 350 |
| 25 | Max lifting speed with full goods | 280 |
| 26 | Max speed without goods | Km/h | 15 |
| 27 | Max speed with full goods | 14 |
| 28 | Max climbing angle | ％ | 15 |
| 29 | Self weight | Kg | 4150 |
| 30 | Driving Wheel | | 2/2 |
| 31 | Tyre model | | pneumatic tyre |
| 32 | Front Tyre | | 28x9-15 |
| 33 | Rear Tyre | | 18x7-8 |
| 34 | Hand Brake | | Hydraulic Pedal |
| 35 | Brake type | | M-Hand |
| 36 | Lead aicd Battery Volt/ capacity | V/Ah | 80/300 |
| 37 | Lithium Battery Volt/ capacity | V/Ah | 80/206 |
| 38 | Driving motor power | Kw | 10 |
| 39 | Pump power | 12 |
